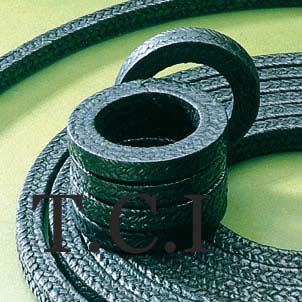

LATTYtex 2761
Cost-effective Graphited Packing
Packing made of special polyacrylic yarns. Each single yarn is impregnated with PTFE using our exclusive "Filcoat"-process. The packing is then re-impregnated during plaiting operation in a bath consisting of graphite mixed with special lubricants.
Rotating machines, low-pressure valves.
All moderately aggressive fluids.
The maximum temperature, pressure and speed given cannot be associated in any case.
Parameters |
T -50°C to 260°C |
P < 10 MPa (100 bar) |
S < 15 m/s |
pH 1 - 13 |
| Gland packings for valves and pumps |
|
|
|
|
